通过第一篇文章我们已经知道了怎么生成代理对象，现在这篇文章我们来跟踪下源码怎么执行代理方法。一个简单的例子来探寻SpringAOP执行源码的主脉络(一)：创建代理对象

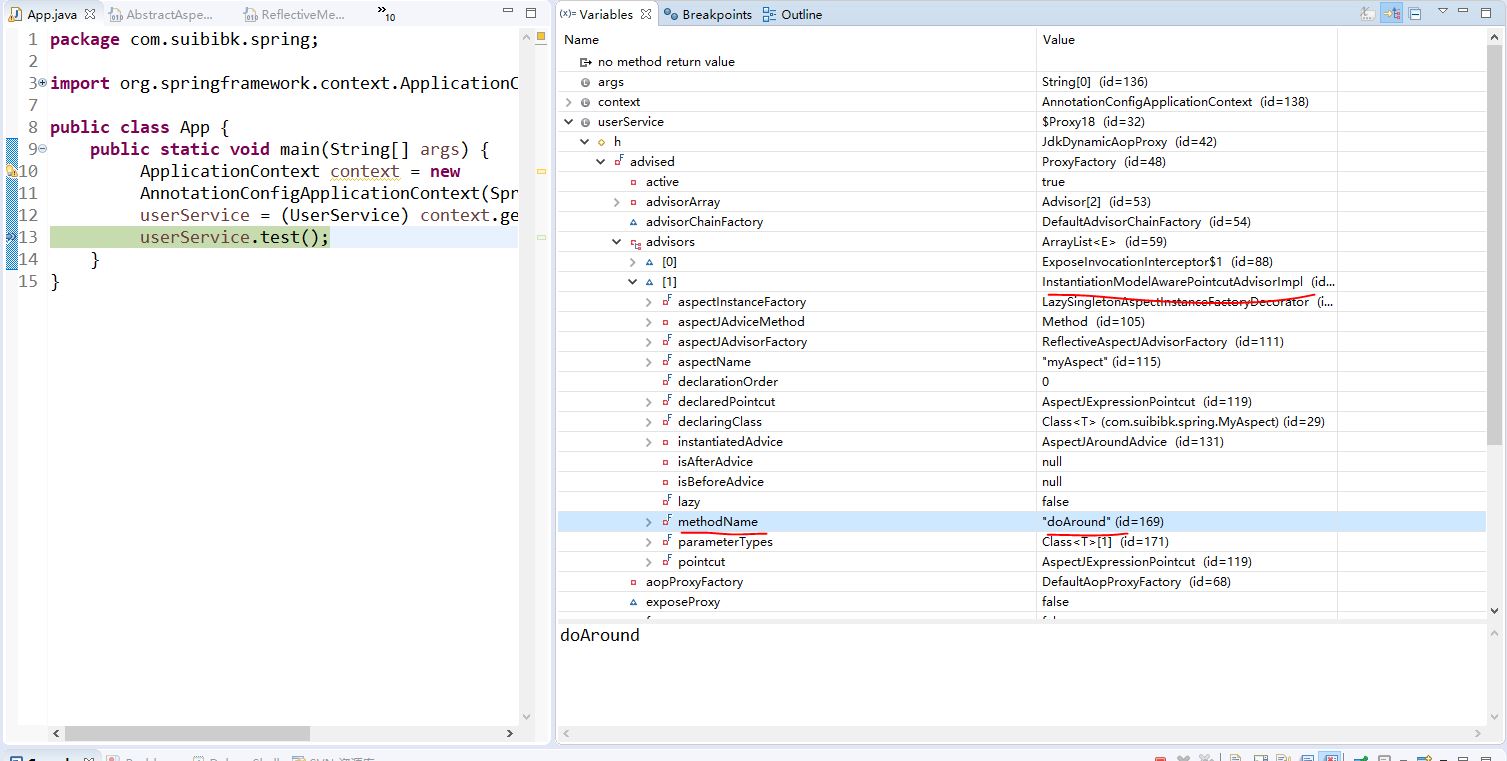

我们调试可以发现，我们的代理对象内容如下

里面有两个Advisor，第一个应该是spring默认的，我们定义的增强器为

InstantiationModelAwarePointcutAdvisor

这个也就对应我们的

@Aspect
@Component
public class MyAspect {
    @Pointcut("execution(public * com.suibibk.spring.service.*.*(..))")
    public void web() {
    }
    @Around("web()")
    public Object doAround(ProceedingJoinPoint pjp) throws Throwable {
        System.out.println("之前");
        Object obj =pjp.proceed();
        System.out.println("之后");
        return obj;
    }
}

里面的doAround方法，是这个方法的包装。我们点击下一步，进入到这个代里对象的invoke方法

    public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
        Object oldProxy = null;
        boolean setProxyContext = false;
        TargetSource targetSource = this.advised.targetSource;
        Object target = null;
        try {
            if (!this.equalsDefined && AopUtils.isEqualsMethod(method)) {
                // The target does not implement the equals(Object) method itself.
                return equals(args[0]);
            }
            else if (!this.hashCodeDefined && AopUtils.isHashCodeMethod(method)) {
                // The target does not implement the hashCode() method itself.
                return hashCode();
            }
            else if (method.getDeclaringClass() == DecoratingProxy.class) {
                // There is only getDecoratedClass() declared -> dispatch to proxy config.
                return AopProxyUtils.ultimateTargetClass(this.advised);
            }
            else if (!this.advised.opaque && method.getDeclaringClass().isInterface() &&
                    method.getDeclaringClass().isAssignableFrom(Advised.class)) {
                // Service invocations on ProxyConfig with the proxy config...
                return AopUtils.invokeJoinpointUsingReflection(this.advised, method, args);
            }
            Object retVal;
            //这个如果开启表明会将当前代理对象放到当前西线程中，然后你在当前方法中就可以获取当前的代理对象了。
            if (this.advised.exposeProxy) {
                // Make invocation available if necessary.
                oldProxy = AopContext.setCurrentProxy(proxy);
                setProxyContext = true;
            }
            // Get as late as possible to minimize the time we "own" the target,
            // in case it comes from a pool.
            target = targetSource.getTarget();
            Class<?> targetClass = (target != null ? target.getClass() : null);
            // Get the interception chain for this method.
            //这里就是获取两个增强器，第二个才是我们要的
            List<Object> chain = this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, targetClass);
            // Check whether we have any advice. If we don't, we can fallback on direct
            // reflective invocation of the target, and avoid creating a MethodInvocation.
            if (chain.isEmpty()) {
                // We can skip creating a MethodInvocation: just invoke the target directly
                // Note that the final invoker must be an InvokerInterceptor so we know it does
                // nothing but a reflective operation on the target, and no hot swapping or fancy proxying.
                Object[] argsToUse = AopProxyUtils.adaptArgumentsIfNecessary(method, args);
                retVal = AopUtils.invokeJoinpointUsingReflection(target, method, argsToUse);
            }
            else {
                // We need to create a method invocation...
                //把全部信息都封装成一个MethodInvocation对象，然后调用proceed方法。
                MethodInvocation invocation =
                        new ReflectiveMethodInvocation(proxy, target, method, args, targetClass, chain);
                // Proceed to the joinpoint through the interceptor chain.
                retVal = invocation.proceed();
            }
            // Massage return value if necessary.
            Class<?> returnType = method.getReturnType();
            if (retVal != null && retVal == target &&
                    returnType != Object.class && returnType.isInstance(proxy) &&
                    !RawTargetAccess.class.isAssignableFrom(method.getDeclaringClass())) {
                // Special case: it returned "this" and the return type of the method
                // is type-compatible. Note that we can't help if the target sets
                // a reference to itself in another returned object.
                retVal = proxy;
            }
            else if (retVal == null && returnType != Void.TYPE && returnType.isPrimitive()) {
                throw new AopInvocationException(
                        "Null return value from advice does not match primitive return type for: " + method);
            }
            return retVal;
        }
        finally {
            if (target != null && !targetSource.isStatic()) {
                // Must have come from TargetSource.
                targetSource.releaseTarget(target);
            }
            if (setProxyContext) {
                // Restore old proxy.
                AopContext.setCurrentProxy(oldProxy);
            }
        }
    }

上面关键步骤都有中文注释，主要就是获取Advisor链，然后封装成一个MethodInvocation对象。我们调试进去。

@Override
    @Nullable
    public Object proceed() throws Throwable {
        // We start with an index of -1 and increment early.
        //这里是递归的返回出口
        if (this.currentInterceptorIndex == this.interceptorsAndDynamicMethodMatchers.size() - 1) {
            return invokeJoinpoint();
        }
        //这里是获取当前的一个下标，也就是先加1，一开始是-1
        Object interceptorOrInterceptionAdvice =
                this.interceptorsAndDynamicMethodMatchers.get(++this.currentInterceptorIndex);
        if (interceptorOrInterceptionAdvice instanceof InterceptorAndDynamicMethodMatcher) {
            // Evaluate dynamic method matcher here: static part will already have
            // been evaluated and found to match.
            InterceptorAndDynamicMethodMatcher dm =
                    (InterceptorAndDynamicMethodMatcher) interceptorOrInterceptionAdvice;
            Class<?> targetClass = (this.targetClass != null ? this.targetClass : this.method.getDeclaringClass());
            if (dm.methodMatcher.matches(this.method, targetClass, this.arguments)) {
                return dm.interceptor.invoke(this);
            }
            else {
                // Dynamic matching failed.
                // Skip this interceptor and invoke the next in the chain.
                return proceed();
            }
        }
        else {
            // It's an interceptor, so we just invoke it: The pointcut will have
            // been evaluated statically before this object was constructed.
            //这里把当前类对象传过去
            return ((MethodInterceptor) interceptorOrInterceptionAdvice).invoke(this);
        }
    }

这里通过用巧妙的方式，把循环去掉，变成递归。其实就是记录一个下标，没执行一个Advisor就自增一次，等所有Advisor都执行完了后，才会去调用正真的被代理对象的业务逻辑方法

if (this.currentInterceptorIndex == this.interceptorsAndDynamicMethodMatchers.size() - 1) {
    return invokeJoinpoint();
}

我们发现我们的Advisor不是InterceptorAndDynamicMethodMatcher，所以会进入后面的方法

public class AspectJAroundAdvice extends AbstractAspectJAdvice implements MethodInterceptor, Serializable

return ((MethodInterceptor) interceptorOrInterceptionAdvice).invoke(this);

@Override
    public Object invoke(MethodInvocation mi) throws Throwable {
        MethodInvocation oldInvocation = invocation.get();
        invocation.set(mi);
        try {
            return mi.proceed();
        }
        finally {
            invocation.set(oldInvocation);
        }
    }

这里执行完业务操作后又调用了

return mi.proceed();

又回到了上面的方法，不过此时currentInterceptorIndex==0，所以自加后会取到第二个,第二个是我们的切面方法

@Override
    public Object invoke(MethodInvocation mi) throws Throwable {
        if (!(mi instanceof ProxyMethodInvocation)) {
            throw new IllegalStateException("MethodInvocation is not a Spring ProxyMethodInvocation: " + mi);
        }
        ProxyMethodInvocation pmi = (ProxyMethodInvocation) mi;
        ProceedingJoinPoint pjp = lazyGetProceedingJoinPoint(pmi);
        JoinPointMatch jpm = getJoinPointMatch(pmi);
        return invokeAdviceMethod(pjp, jpm, null, null);
    }

我们进到

invokeAdviceMethod(pjp, jpm, null, null);

看看是怎么执行我们的

    @Around("web()")
    public Object doAround(ProceedingJoinPoint pjp) throws Throwable {
        System.out.println("之前");
        Object obj =pjp.proceed();
        System.out.println("之后");
        return obj;
    }

方法的

protected Object invokeAdviceMethod(JoinPoint jp, @Nullable JoinPointMatch jpMatch,
            @Nullable Object returnValue, @Nullable Throwable t) throws Throwable {
        return invokeAdviceMethodWithGivenArgs(argBinding(jp, jpMatch, returnValue, t));
    }

我们进入到

invokeAdviceMethodWithGivenArgs(argBinding(jp, jpMatch, returnValue, t));

protected Object invokeAdviceMethodWithGivenArgs(Object[] args) throws Throwable {
        Object[] actualArgs = args;
        if (this.aspectJAdviceMethod.getParameterCount() == 0) {
            actualArgs = null;
        }
        try {
            ReflectionUtils.makeAccessible(this.aspectJAdviceMethod);
            // TODO AopUtils.invokeJoinpointUsingReflection
            //应该是在这里执行的
            return this.aspectJAdviceMethod.invoke(this.aspectInstanceFactory.getAspectInstance(), actualArgs);
        }
        catch (IllegalArgumentException ex) {
            throw new AopInvocationException("Mismatch on arguments to advice method [" +
                    this.aspectJAdviceMethod + "]; pointcut expression [" +
                    this.pointcut.getPointcutExpression() + "]", ex);
        }
        catch (InvocationTargetException ex) {
            throw ex.getTargetException();
        }
    });

aspectJAdviceMethod这个就是我们的doAround方法，这里是执行这个方法。这一个方法运行会跳到我们的

    @Around("web()")
    public Object doAround(ProceedingJoinPoint pjp) throws Throwable {
        System.out.println("之前");
        Object obj =pjp.proceed();
        System.out.println("之后");
        return obj;
    }

执行第一条语句答应后会取执行我们的proceed()方法，这里会去执行我们的test()方法，然后又会跳到

//这里是递归的返回出口
        if (this.currentInterceptorIndex == this.interceptorsAndDynamicMethodMatchers.size() - 1) {
            return invokeJoinpoint();
        }

这里的invokeJoinpoint()就是执行我们正真的方法

@Nullable
    protected Object invokeJoinpoint() throws Throwable {
        return AopUtils.invokeJoinpointUsingReflection(this.target, this.method, this.arguments);
    }

@Nullable
    public static Object invokeJoinpointUsingReflection(@Nullable Object target, Method method, Object[] args)
            throws Throwable {
        // Use reflection to invoke the method.
        try {
            ReflectionUtils.makeAccessible(method);
            //执行业务逻辑
            return method.invoke(target, args);
        }
        catch (InvocationTargetException ex) {
            // Invoked method threw a checked exception.
            // We must rethrow it. The client won't see the interceptor.
            throw ex.getTargetException();
        }
        catch (IllegalArgumentException ex) {
            throw new AopInvocationException("AOP configuration seems to be invalid: tried calling method [" +
                    method + "] on target [" + target + "]", ex);
        }
        catch (IllegalAccessException ex) {
            throw new AopInvocationException("Could not access method [" + method + "]", ex);
        }
    }

执行完业务逻辑后又会跳回

@Around("web()")
    public Object doAround(ProceedingJoinPoint pjp) throws Throwable {
        System.out.println("之前");
        Object obj =pjp.proceed();
        System.out.println("之后");
        return obj;
    }

打印”之后”然后返回。然后就执行完了，总体来说还是比较简单的。

总之：主要的业务处理考的是每个Advisor里面的advice(通知)的invoke方法。所以后面我们看事务的代理对象执行逻辑也只需要看它的advisor里面的advice的invoke方法就可以了。
